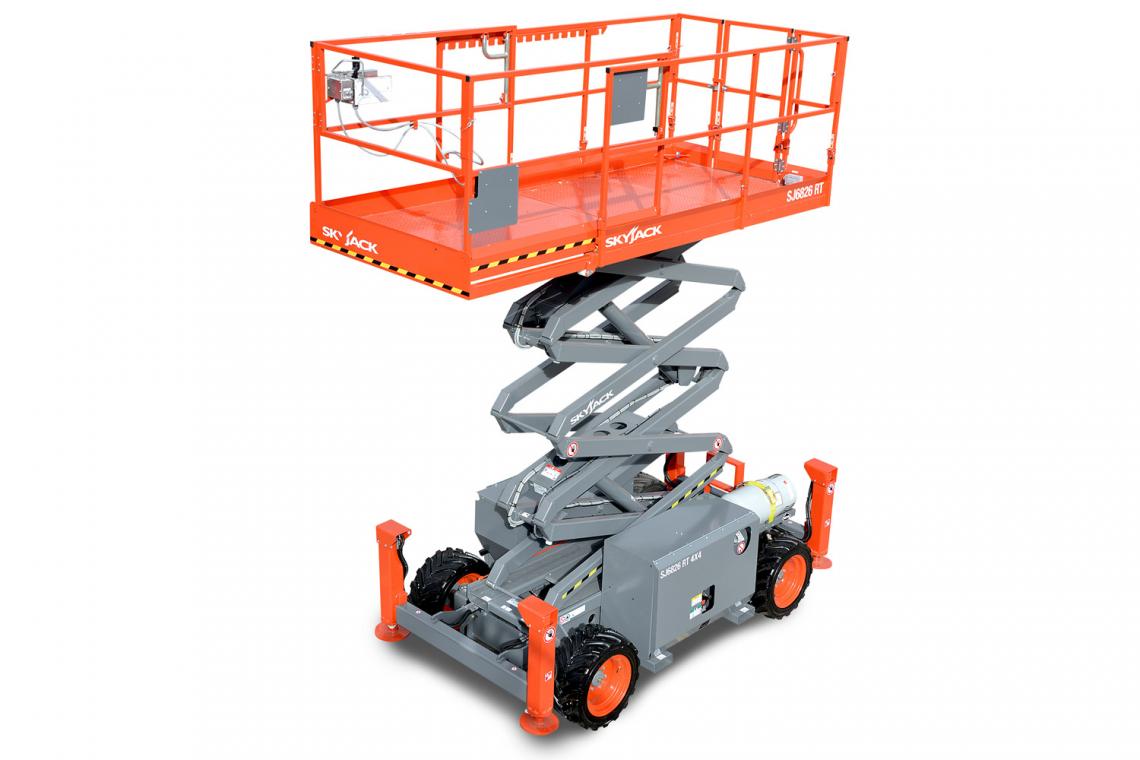

Skyjack SJ6286RT Rough Terrain Scissor Lift Rental in Milwaukee
Skyjack rough terrain scissor lifts offer high platform capacities and strong gradeability of up to 45%. Crossover symmetrical four-wheel drive sends maximum torque to all four wheels, giving the machine reliable traction on uneven and unimproved job sites.
The lift can be driven at full height with the 1.52 m roll out extension deck fully extended. Power comes from a 24 hp Kubota diesel engine mounted on a 90° swing out engine tray for easy service access. Multiple wet disc, spring applied, hydraulic release brakes provide dependable stopping power, and foam filled grip lug tires resist punctures on rough ground. Independent auto leveling outriggers help set up the machine on uneven terrain.
Features
Key features include:
- Relay based control system with color coded and numbered wiring
- Tilt alarm with drive and lift cut-out
- Overload sensing system
- Lowering warning system and operator horn
- Hinged railing system with a full height spring hinged gate at the rear
- Lanyard attachment points and scissor guards
- Wiring for an AC outlet on the platform
- Forklift pockets and tie down/lift lugs
SKYCODED™ Control System
Skyjack’s proven control system uses color coded and numbered wiring, which makes troubleshooting and repairs faster and simpler. Easier maintenance means less downtime and lower operating costs.
ACCESSORYZERS™
Skyjack offers a full line of ACCESSORYZERS™ to expand what your machine can do. These manufacturer approved accessories add functionality and operator convenience, whether you need to carry materials to the work area, protect equipment from the weather, or get more done on each shift.
Specifications
- Work Height: 32′ (9.75 m)
- Raised Platform Height: 26′ (7.92 m)
- Lowered Platform Height: 48.5″ (1.23 m)
- Overall Width: 69.5″ (1.76 m)
- Overall Length: 107″ (2.72 m)
- Stowed Height (Rails Up): 93.5″ (2.38 m)
- Stowed Height (Rails Down): 63.5″ (1.61 m)
- Platform Width (Inside Dimension): 56″ (1.42 m)
- Platform Length (Inside Dimension): 96″ (2.44 m)
- Extension Deck: 5′ (1.52 m)
- Ground Clearance: 8″ (0.20 m)
- Wheelbase: 80.5″ (2.04 m)
- Weight: 6,400 lbs (2,903 kg)
- Gradeability: 45%
- Turning Radius (Inside): 60″ (1.52 m)
- Turning Radius (Outside): 156″ (3.96 m)
- Lift Time (With Rated Load): 36 sec
- Lower Time (With Rated Load): 36 sec
- Drive Speed (Stowed): 3.8 mph (6.1 km/h)
- Drive Speed (Raised): 0.4 mph (0.6 km/h)
- Maximum Drive Height: Full Height
- Capacity: 1,250 lbs (567 kg)
- Distributed Capacity (Main Platform): 950 lbs (431 kg)
- Distributed Capacity (Extension Deck): 300 lbs (136 kg)
- Local Floor Load (With Rated Load): 175 psi (1206 kPa)
- Overall Floor Load (With Rated Load): 281 psf (13 kPa)
- Maximum # of Persons: 4
- Tire Type: Foam Filled
- Tire Size: 26 x 12
